milk box wrapping by monoblock shrink wrapper

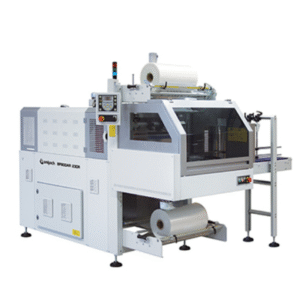

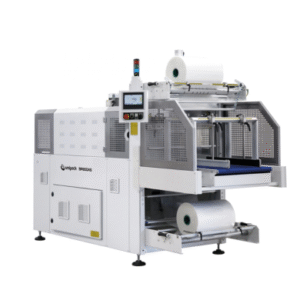

BP600 – Monoblock Semi-Automatic Shrink Wrapper

Monoblock shrink wrapping machine with sealing bar

The BP600 monoblock semi-automatic shrink wrapper combines a compact design with a high-performance sealing bar, making it an excellent solution for efficient packaging operations.

Sealing area	550mm
Product maximum height	380mm
Maximum output up to	10ppm **

Industries: Beverage | Dairy | E-commerce | Cosmetics

REQUEST A QUOTATION

Description
Characteristics
Brand
Media
Technical Data

Description

Smipack BP600 - Monoblock Semi-Automatic Shrink Wrapper

Semi-Automatic shrink wrapping machine with sealing bar by Smipack

The Smipack BP600 monoblock semi-automatic shrink wrapper combines a compact design with a high-performance sealing bar, making it an excellent solution for efficient packaging operations. Its semi-automatic functionality ensures user-friendly operation while optimising productivity. Designed to handle a variety of product sizes, the BP600 delivers professional, consistent shrink-wrapping results. Ideal for industries such as food, beverage, and retail packaging, this system stands out as a reliable and versatile choice for businesses seeking quality and simplicity in their packaging processes.

The benefits of the BP600 – Monoblock semi-automatic shrink wrapper with sealing bar:

1. Versatility: The BP600 is capable of packing a wide range of products in film only or pad + film, making it suitable for various market sectors.
2. Compact Design: Its monoblock design integrates the sealing and shrink-wrapping processes, saving space and reducing equipment footprint.
3. High-Speed Packaging: It can achieve production speeds of up to 25 packs per minute, improving efficiency for medium-volume packaging operations.
4. Easy Integration: The machine is designed to seamlessly integrate into shrink film packaging lines, enhancing workflow and overall productivity.
5. User-Friendly Operation: The semi-automatic nature of the BP600 makes it easy to operate with minimal training, providing a cost-effective solution for businesses.
6. Reliable Sealing: The sealing bar ensures strong, high-quality seals for secure and professional-looking packages

Smipack – Al Thika Packaging LLC

Al Thika Packaging is the exclusive distributor of Smipack in the Middle East. Since 1994 Al Thika has been supplying best packaging & sealing machines including shrink wrappers, flow wrapper, automatic overlap shrink wrapping, L-sealers & hood packers for food, beverages & non-food industries in Dubai, Abu Dhabi, Sharjah, Fujairah, Ras Al Khaimah, Ajman, Umm Al Quwain, Al Ain – UAE, Muscat, Oman and the many other Gulf countries.

Power supply	220 – 240 / 380 – 415 V
	3PH + PE / 3PH + N + PE
	50/60 Hz
Installed power	13900 W
Air pressure	6 Bar
Required air	14,5 Nl/p*
Maximum output up to	10 ppm**
Product maximum height	380 mm
Sealing bar	550 mm
Maximum size of film reel	540 x Ø 350 mm
Working board height	945 – 1105 mm
Machine size	2565 x 1200 mm
Machine size	h 2105 – 2265 mm
Machine net weight	530 Kg
Advised film: LDPE	20 – 100 µ

(*) Normal Iiters per pack.

(**) Packs per minute. The stated speed can change according to the product size, the pack collation and the type of film used.

Brand

Smipack

Smipack Shrink & Flow Wrapper

In any trade, the demand for low-cost, simple and quick shrink wrapping machine solutions to pack small and medium-sized products increases all the time. The extraordinary versatility of Smipack shrink wrapper and sealing machine is the winning solution. Smipack manufacturer of shrink wrap machines which are suitable for several market segments: food (bakery, confectionery, pizza, fruit and vegetable, dairy products, drinks and preserved food), non-food (products for graphic, electronic, mechanical and computer industry, laundry, toys, detergents, perfumes and pharmaceutical products), packaging for third parties and supermarket chains.

Complete range of shrink wrapper and l sealer

DOWNLOAD BROCHURE NOW

Semi-automatic shrink wrapper
Mono-chamber tunnel
Motorized upper and lower film unwinding
Pneumatic product pusher, activated by two buttons
Included: feet for the machine fastening, press rod to stop products, cooling fan at the tunnel outlet
Monoblock frame
Pneumatic sealing bar equipped with safety sensors
Pneumatic film cut by cold blade
Rollers are positioned on the upper and lower unwinders to make the reels easier to load
Metric graduation based film reels centering system
FLXMOD® electronic control system working by means of a 4.3″ graphic LCD rotating control panel, equipped with PLC
Power and control section made up of:
- Inverter
- IN/OUT (Input/Output) command modules with 16 digital inputs/outputs
- Analog inputs command modules
- Thermocouple reading control modules
- Such system allows a simple and accurate control of all current operations, that is:
  - storing of 20 different working cycles
  - speed adjustment of the shrinkwrapper and tunnel conveyors by means of an inverter
- Process statistics
- Tunnel air flow adjustable by means of independent deflectors
- Tunnel conveyor equipped with heat-resistant glass fibre bars (SMI patent) which ensures that:
  - the conveyor stiffness grants stability to the products passing through, for a compact and well-shrunk pack
  - the conveyor can bear a product weight up to 30 kilos
  - the conveyor bars never get rusted, as it happens when using traditional metallic conveyors
  - the maintenance is easy and low-cost, thanks to the possibility of replacing just the worn out bars
Oven cooling system
Low power consumption
Compliance with CE regulations
