C23 PlusLine Checkweigher
Scalable Weighing Solution.
This compact, easy to operate checkweigher is designed for high accuracy weight control of heavy loads up to 80 kg and can be configured to different application needs in challenging environments.
| Max Weighing Zones | 7 |
| Max Line Speed | 150 m/min |
| Weighing Technology | Strain Gauge |
Industries: Bakery | Confectionery | Dairy | Chemical | Meat & Poultry | Beverage | Automotive | Ready Meals | Snack Foods | Seafood | Oil & Fat | Pet Food
- Description
- Technical Specs
- Brand
- Media
Description

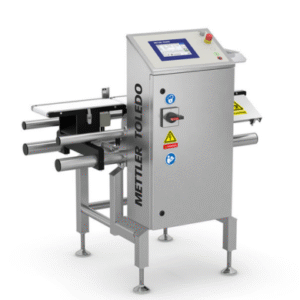

C23 PlusLine Checkweigher
Scalable Weighing Solution
- Conveyor speed up to 90 meters per minute
- Weighing range from 200 g to 35 kg / 500 g to 80 kg
- 7 or 12inch multilingual touchscreen
- Space-saving weighing solution for heavy load applications with high accuracy requirements
- The modular design can be configured according to customer needs including mechanical design, software functionality and data communication options
- Achieve maximum process stability and equipment efficiency through transport and sorting options for heavy loads
- Available as space-saving metal detection combination system
Configurable to Customer Needs
The modular design offers full configurability including the mechanical design, software functionality and data communication.
Weighing Performance Options
Choice of standard or high performance load cells available to match your application and accuracy requirements.
Choices for Challenging Environments
Designed for endurance and maximum reliability in a variety of dry, dusty or wet environments with an IP54 or IP65 rating.
Material No: 2400230000
Intuitive Operation
The system supports intuitive operation in over 30 languages via the 12″ color touchscreen positioned in front of the conveyor for ease of use. Machine messages are communicated as clear text for easy understanding
Data Governance to Support Performance
Over 10 different interface / protocol combinations including Ethernet, Field bus and OPC technologies enable IoT / Industry 4.0 initiatives so that production data can be accessed, analysed and controlled anytime and anywhere.
Meets MID Requirements
The C23 delivers high accuracy in line with MID requirements, providing quality assurance and reducing costly product waste for loads up to 80 kg.
Optional Metal Detection Integration
Available as the CM2 combination system to be used as a Critical Control Point reliably detecting metal contaminants and carrying out weight control in a single, space-saving device.
Mettler Toledo – Al Thika Packaging LLC
Al Thika Packaging, the exclusive distributor of Mettler Toledo in the Middle East since 1994, provides a diverse range of premium machinery solutions. Specialising in Garvens dynamic Checkweighing systems, Safeline X-ray inspection equipment, Safeline integrated metal detection systems, and CI-Vision product inspection technology, Al Thika serves the food and non-food industries. With extensive reach across Dubai, Abu Dhabi, Sharjah, Fujairah, Ras Al Khaimah, Ajman, Umm Al Quwain, Al Ain – UAE, as well as Oman, Bahrain, Pakistan, Qatar, Kuwait and other Gulf countries, Al Thika Packaging ensures top-tier inspection and quality control solutions for businesses in the region
Specifications – C23 PlusLine Checkweigher
| IP Rating | IP54 IP65 |
| Compatible Software | ProdX |
| Connectivity | Fieldbus OPC UA |
| Inspection Solution | Checkweighing |
| Max Product Width | 1,100 mm |
| Max Weighing Zones | 7 |
| Weighing Technology | Strain Gauge |
| HMI | 12″ Touchscreen 7″ Touchscreen |
| Packaging Type | Bags Bottle Bundles Cardboard Cartons Cases Pallets |
| Product Flow | Conveyor |
| Inspection Application | Completeness Check Weight Control |
| Product Characteristic | Deep Frozen Dry Heavy Weight Packages Tall Rigid Containers |
| Industry | Chemical Food & Beverage Metal, Plastic and Electronics Components Pharma & Biotech Transport and Logistics |
| Weighing Accuracy | from ±5 g |
| Industry Segment | Agriculture and Bulk Foods Automotive Bakery and Confectionery Beer, Wine and Other Alcoholic Beverages Bulk Chemicals Cosmetics Dairy Fine and specialty chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Shipping and Mailing Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
| Max Product Weight | 80 kg |
| Max Line Speed | 150 m/min |
| Max Throughput | 150 ppm |
