Curiosity Optical Sorter
Curiosity is the first optical sorting machine born to achieve the totally hygienic compliance according to the EHEDG guidelines.
This sorting machine combines innovation, essential design and latest vision technology, it perfectly meets the needs of safety and quality control, hygienic operation, easy and quick sanitation.
| Technology | Pulsed LEDs with CCD cameras |
| Optical resolution | 0,3×0,3 mm |
| Vision Width |
CY-600:600 mm vision width; CY-1200:1200 mm vision width; CY-1800:1800 mm vision width; |
Industries: Fruit & Vegetables | Dry Fruits
- Description
- Technical Spec
- Brand
- Media
- Technical Data
Description

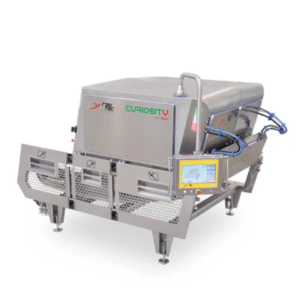

Curiosity Optical Sorter
The first totally hygienic sorter
Curiosity is the first optical sorting machine born to achieve the totally hygienic compliance according to the EHEDG guidelines.
This sorting machine combines innovation, essential design and latest vision technology, it perfectly meets the needs of safety and quality control, hygienic operation, easy and quick sanitation.
Guided by our powerful UNYCO software, Curiosity can detect all the defects you are looking to reject, while caring for the good part.
A vibratory shaker built in the machine conveys the product to a vertical chute ensuring a consistent trajectory.
Curiosity is available in 3 versions
CY-600:
600 mm vision width;
96 ejection valves.
CY-1200:
1200 mm vision width;
192 ejection valves.
CY-1800:
1800 mm vision width;
288 ejection valves.
Raytec Vision – Al Thika Packaging LLC
Al Thika Packaging is the distributor of Raytec Vision. Since 1994 Al Thika Packaging has been supplying sorting machines for nuts, fruit and vegetable industries in in Dubai, Abu Dhabi, Sharjah, Fujairah, Ras Al Khaimah, Ajman, Umm Al Quwain, Al Ain – UAE, Muscat, Oman and the many other Gulf countries.
Technology:
• Pulsed LEDs with CCD cameras
Optical resolution:
• 0,3×0,3 mm
Vision:
• on belt – top view
Version:
• 2 WAY / 3 WAY
Models:
• CY-600 / CY-1200 / CY-1800
Brand
Raytec Vision
Raytec Vision Optical Sorter
Raytec Vision leading expert in optical sorting machine technology for dry fruits, dates, nuts, potatoes, fruit and vegetable and other food products. Raytec sorters remove product defects and foreign materials based on Infrared, Chlorophyll, Translucency, Colour, Shape. Leading manufacturer Raytec Vision offers a wide range of sensor-based sorters and camera-based sorters.
Camera and sensor based sorting machines
Al Thika Packaging is the distributor of Raytec Vision. Since 1994 Al Thika Packaging has been supplying sorting machine for food industries in Dubai, Abu Dhabi, Sharjah, Fujairah, Ras Al Khaimah, Ajman, Umm Al Quwain, Al Ain – UAE, Muscat, Oman and the many other Gulf countries.
|
Technical Features |
|||
| CY-600 | CY-1200 | CY-1800 | |
| Optical Resolution | 0,3X0,3 mm | ||
| Air Nozzles | 96 | 192 | 288 |
| Nozzle Pitch | 6 mm | ||
| User Interface | 18″ LCD touch-screen monitor | ||
| Remote Connection | Ethernet/Wi-Fi | ||
|
Utilities |
|||
| Power Supply | 3F= T | ||
| Voltage | 400/480 V | ||
| Frequency | 50/60 Hz | ||
| Installed Power | 5 Kw | 6kW | 7kW |
| Air Pressure | 6÷8 bar [87÷116 psi] | ||
| Air Consumption (Typical) | 1300 Nl/min | 2500 Nl/min | 3800 Nl/min |
| Air Consumption (Maximum) | 1800 Nl/min | 3500 Nl/min | 5300 Nl/min |
| Weight | 1700 Kg | 2000 Kg | 2300Kg |
