S560NA – L-Seal Hood Packer

Manual Shrink Wrapper

The Smipack S560NA series gives an output ranging up to 900 packs/hour.

Sealing area	560 x 430 mm
Maximum pack height	260 mm
Average output up to	900 pph **

REQUEST A QUOTATION

Description
Characteristics
Brand
Media
Technical Data

Description

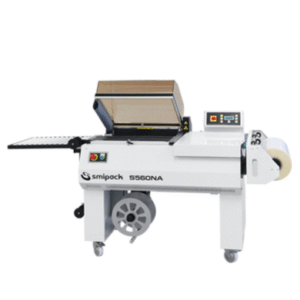

S560NA - Manual L-Sealing Machine

Manual L-Sealer by Smipack

The Smipack S560NA is designed for businesses looking for a versatile, reliable, and efficient shrink-wrapping solution for high-quality packaging across a range of industries. Manual l-sealer S560NA give outputs ranging up to 900 packs/hour.

The key benefits of the S560NA – L-seal hood packer:

Efficient Shrink-Wrapping: The L-seal and hood technology ensures fast and effective shrink-wrapping, providing a secure, professional finish for a wide range of products.
Versatile Packaging: It can package various product types, including irregular shapes and small items, making it ideal for different industries such as food, pharmaceuticals, and consumer goods.
High-Quality Sealing: The L-seal bar delivers reliable, consistent seals, ensuring tamper-evident packaging that protects products during transport and storage.
Increased Productivity: The machine’s high-speed operation enhances production efficiency, with quick setup and minimal downtime.
Space-Saving Design: The compact monoblock design integrates sealing and shrink-wrapping in one unit, helping businesses save floor space in their packaging areas.
User-Friendly: It features easy operation and maintenance, reducing training time and improving overall workflow.

Smipack – Al Thika Packaging LLC

Al Thika Packaging is the exclusive distributor of Smipack in the Middle East. Since 1994 Al Thika has been supplying best packaging & sealing machines including shrink wrappers, flow wrapper, automatic overlap shrink wrapping, L-sealers & hood packers for food, beverages & non-food industries in Dubai, Abu Dhabi, Sharjah, Fujairah, Ras Al Khaimah, Ajman, Umm Al Quwain, Al Ain – UAE, Muscat, Oman and the many other Gulf countries.

Power supply	220 – 240 V
	1PH – N – PE
	50/60 Hz
Installed power	3740 W
Sealing bar	560 x 430 mm
Maximum pack height	260 mm
Average output up to	900 pph **
Maximum size of film reel	600 – ø 250 mm
Machine size	2010 x 790 mm
Machine size	h 1090 mm
Machine net weight	153 Kg
Usable Films: Pvc, Polyolefins	up to 30 µ

(**) Packs per hour. The stated speed can change according to the product size, the pack collation and the type of film used.

Brand

Smipack

Smipack Shrink & Flow Wrapper

In any trade, the demand for low-cost, simple and quick shrink wrapping machine solutions to pack small and medium-sized products increases all the time. The extraordinary versatility of Smipack shrink wrapper and sealing machine is the winning solution. Smipack manufacturer of shrink wrap machines which are suitable for several market segments: food (bakery, confectionery, pizza, fruit and vegetable, dairy products, drinks and preserved food), non-food (products for graphic, electronic, mechanical and computer industry, laundry, toys, detergents, perfumes and pharmaceutical products), packaging for third parties and supermarket chains.

Complete range of shrink wrapper and l sealer

DOWNLOAD BROCHURE NOW

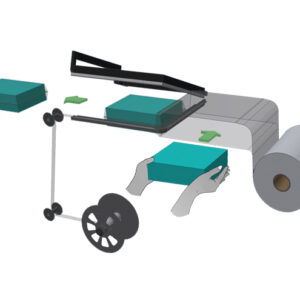

S560-NA sealing process

Sealing and shrinking in one operation
PTFE-coated sealing blade
Air cooling of the machine frame
Closed-circuit liquid cooling of the sealing bars
Viewer of the coolant level
Quick adjustment of the packaging plate height by means of an external crank
Mobile product-holding plate, loose from the film reel support to allow a better adjustment of the film to the pack size
Emergency button
Automatic hood release
Automatic pack discharge by means of a motorised conveyor
Flextron® control system equipped with:
1. alphanumeric LCD control panel provided with a 16-bit microprocessor card and solid state relays, that allow a simple and precise control of all the machine operations, such as:
  - machine status
  - number of packs produced by an electronic pack counter
  - real-time production
  - adjustment of the sealing temperature
  - adjustment of the hood opening delay
  - adjustment of the shrinking delay
  - adjustment of the shrinking time
  - adjustment of the shrinking chamber temperature
  - pack discharge speed
  - automatic hood closing and re-opening, motorised and managed by Inverter
  - possibility of scheduling up to 10 different work cycles, thus resulting in increased productivity and simplified use
  - troubleshooting
2. Modular power section, separated from the control panel and characterised by:
  - longer-lasting solid-state relays providing easier maintenance
  - in case of failure, there is a possibility of replacing just the damaged module, without losing the data stored in the memory
Reduced power consumption
Compliance with CE regulations
