SmartDate X65 128

Designed for wide-format printing applications, the SmartDate® X65-128 TTO printer delivers high-volume, high-resolution printing on flexible film packaging at speeds up to 700 mm/s.

Speed: Low | Medium

REQUEST A QUOTATION

Description
Brand
Media

Description

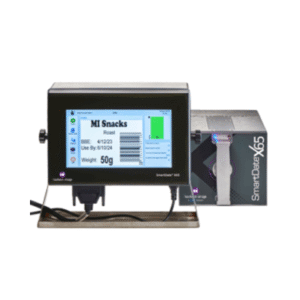

SmartDate® X65-128 TTO printer

High-resolution printing on flexible film packaging at speeds up to 700 mm/s.

Material Type

Technology

Thermal Transfer Overprint

Ideal for wide-format ingredient and nutritional coding, the SmartDate® X65-128 TTO printer delivers high-volume, high-quality printing on flexible film packaging and ensures optimized OEE data tracking.

Your challenges

You need a coding solution that can deliver high-quality printing over a large printing area, facilitating product traceability and compliance. You want to monitor your overall equipment effectiveness (OEE) in order to maximize the availability and efficiency of your production line. You also need a printer with an easy and intuitive user interface, with simplified operation and low operational intervention.

Our solutions

Ideal for long ingredient lists and nutritional-fact coding, the SmartDate® X65-128 thermal transfer ribbon printer offers a large choice of ribbon rolls adapted to a variety of packaging types. This all-in-one technology is suited to both intermittent and continuous applications, and printhead lifetime is improved by automatic set-up, which also allows for dead-dot monitoring. Its use of no-wear parts eliminates the need for preventive maintenance.

Key benefits

The SmartDate® X65-128 TTO printer ensures optimized tracking of OEE data on a 10.1” user-friendly interface, allowing you to easily monitor your most valuable production metrics. The printer’s speed can be set from 10 mm to 700 mm per second, allowing for more than 400 printed packs per minute at 300 dpi. With a printing area of up to 128 mm x 150 mm, the technology delivers twice the amount of variable print compared to a standard coder, providing both time and cost efficiency.

Markem-Imaje – Al Thika Packaging LLC

Al Thika Packaging is the distributor of Markem-Imaje in the Middle East. Since 1994 Al Thika Packaging has been supplying traceability equipment, marking, coding printer, coder, label applicators and consumables for food, pharmaceuticals and beverage industries in Dubai, Abu Dhabi, Sharjah, Fujairah, Ras Al Khaimah, Ajman, Umm Al Quwain, Al Ain – UAE, Muscat, Oman and the many other Gulf countries.

Frequently Asked Questions About SmartDate X65 128 Thermal Transfer Overprinter

How fast can the X65-128 print?

It maintains high-speed performance despite its width, reaching speeds up to 700 mm per second. This allows it to handle high-output lines at over 400 packs per minute while maintaining 300 dpi resolution.

What is the main difference between the standard X65 and the X65-128?

The “128” refers to the printhead width. While the standard X65 has a 53 mm printhead, the X65-128 features a 128 mm printhead. This provides more than twice the print area, making it ideal for wide messages like long ingredient lists, nutritional tables, and multi-pack branding.

What is the maximum ribbon capacity?

It supports ribbon lengths of up to 900 meters. While slightly shorter than the standard 53 mm model (which takes 1100m), it is still industry-leading for wide-format TTOs, significantly reducing changeover frequency.

Does it support both Intermittent and Continuous lines?

Yes. Like the standard model, the X65-128 is an all-in-one printer. The same unit can be configured for either mode without needing to swap out the hardware.
