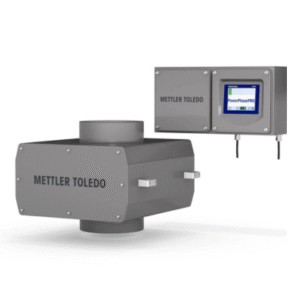

Throat Profile Metal Detector
Outstanding Inspection for vertical packaging applications
Vertical metal detector, controlled from a full colour touchscreen operator interface. Ideal for inspecting free falling products in restricted insertion spaces and prior to bagging machines e.g. Vertical Form, Fill and Seal (VFFS) applications.
| Frequencies | Tuned, single or dual frequency operation up to 800 kHz User configurable with up to 2 single frequencies as standard |
| Automatic Test System (ATS) | IP54 rated: three metals (FE, NFE, SS), four metals (FE, NFE, SS & AL) |
| Human-machine interface (HMI) | 5.7 inch QVGA touchscreen |
Industries: Bakery | Confectionery | Dairy | Snack Foods | Pet Food
- Description
- Technical Specs
- Brand
- Media
Description
Throat Profile Metal Detector
For VFFS applications
Vertical fall/gravity-fed metal detector, controlled from a full color touchscreen operator interface, for inspecting free falling products in-flight.
Maximum Sensitivity and Performance
Multiple ultra high tuned frequencies with enhanced noise and vibration immunity deliver exceptional sensitivity to consistently detect more metal
Simple to Use with Ease of Integration
Intuitive, easy to use icon driven touchscreen and zero metal free zone technology ensures insertion space between weigher & VFFS is kept to a minimum
Maximum Uptime
Condition monitoring and Reduced Test mode support maximum performance over time and allow a reduction in scheduled performance monitoring tests
Condition monitoring and Reduced Test mode support maximum performance over time and allow a reduction in scheduled performance monitoring tests
Material No: 3037275000
Easy Integration
Zero metal free zone technology minimises insertion space between the multi-head weigher and bagmaker without compromising sensitivity performance.
Optimised Configurations
Available in a choice of finishes including painted for use in dry, non-aggressive environments and stainless steel for more demanding applications.
Installation Support
A design service is available to provide support frames and feed funnels for integration with weigher bagger combinations.
Optional Test Kit
The Automatic Test System (ATS) offers a non-invasive method for testing the center line performance of throat metal detectors.
Mettler Toledo – Al Thika Packaging LLC
Al Thika Packaging, the exclusive distributor of Mettler Toledo in the Middle East since 1994, provides a diverse range of premium machinery solutions. Specialising in Garvens dynamic Checkweighing systems, Safeline X-ray inspection equipment, Safeline integrated metal detection systems, and CI-Vision product inspection technology, Al Thika serves the food and non-food industries. With extensive reach across Dubai, Abu Dhabi, Sharjah, Fujairah, Ras Al Khaimah, Ajman, Umm Al Quwain, Al Ain – UAE, as well as Oman, Bahrain, Pakistan, Qatar, Kuwait and other Gulf countries, Al Thika Packaging ensures top-tier inspection and quality control solutions for businesses in the region
Specifications – Throat Profile Metal Detector
| IP Rating | IP65 IP66 |
| Compatible Software | ProdX |
| Connectivity | Ethernet TCP/IP Fieldbus |
| Inspection Solution | Metal Detection |
| Max Aperture Size | 375 mm |
| HMI | 5.7″ Touchscreen |
| Packaging Type | VFFS |
| Product Flow | Freefall/Gravity Fed |
| Frequencies | up to 800 kHz |
| Inspection Application | Contamination Detection |
| Product Characteristic | Deep Frozen Dry |
| Industry | Chemical Food & Beverage Pharma & Biotech |
| Industry Segment | Agriculture and Bulk Foods Bakery and Confectionery Bulk Chemicals Dairy Fine and specialty chemicals Pet Food and Animal Feed Pharma Snack Foods Sugar Starch and Yeast |
