V31 Vision Inspection System

Adaptable, integrable, cost-effective vision system.

Advanced package and label inspection of oriented products by V31 vision inspection system. The flexible system includes a rapid installation frame and product tracking for support of up to six cameras and customized lighting

Reading Devices	PC-Based Camera
Number of Reading Devices	6
Max Camera Field of View	300 x 200 mm
Camera Inspection Area	Side Top
Label Quality Inspection	Graphical ID Label Placement Label Skew Label Wrinkles
Label Data Inspection	1D/2D Barcode Alpha Numeric

REQUEST A QUOTATION

Description
Technical Specs
Brand
Media

Description

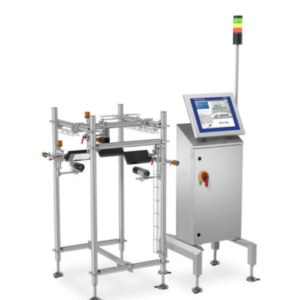

V31 Vision Inspection System

High speed, easy integration, adaptable.

Throughput up to 1000 products per minute
15 inch touchscreen
Rapid integration frame
Advanced camera and lighting options suited to your specific application and package
Choose up to six GigE cameras for a wide range of inspection options
Install on new or existing production lines to inspect a variety of package shapes and sizes
Optional IP65 protection

Increase Operational Efficiency

Automated visual inspection supports speeds up to 1,000 ppm, helping to save time and costs associated with manual quality control inspections.

Flexible Integration Options

The rapid installation frame, advanced camera, and lighting options fit various fields of view for a wide range of products.

Sophisticated Toolset

CIVCore software can perform multiple inter-dependent inspection criteria using powerful cameras for complex inspection applications.

Material No: 2402310000

Label Data and Quality Control

Inspect label quality, text, or other graphic identification to prevent label and package mix-ups and reduce rework or the chance for product recalls.

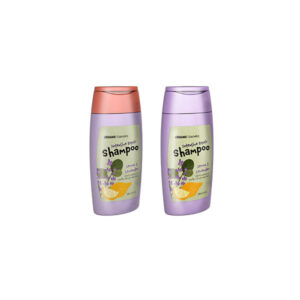

Cap Inspection

Perform inspection of cap or lid placement to help ensure proper closure, or tamper band presence to minimise opportunity for downstream container leaking.

Multiple Lighting Options

Advanced lighting options are designed to create optimal contrast in order to detect defects in labeling and packaging.

Advanced Camera Configurations

Powerful pc-controlled cameras come in a variety of resolutions, lenses, and filters and are designed for optimum speed and performance for your application.

Mettler Toledo – Al Thika Packaging LLC

Al Thika Packaging, the exclusive distributor of Mettler Toledo in the Middle East since 1994, provides a diverse range of premium machinery solutions. Specialising in Garvens dynamic Checkweighing systems, Safeline X-ray inspection equipment, Safeline integrated metal detection systems, and CI-Vision product inspection technology, Al Thika serves the food and non-food industries. With extensive reach across Dubai, Abu Dhabi, Sharjah, Fujairah, Ras Al Khaimah, Ajman, Umm Al Quwain, Al Ain – UAE, as well as Oman, Bahrain, Pakistan, Qatar, Kuwait and other Gulf countries, Al Thika Packaging ensures top-tier inspection and quality control solutions for businesses in the region

Specifications – V31 Vision Inspection System

Reading Devices	PC-Based Camera
IP Rating	IP54 IP65
Compatible Software	ProdX
Connectivity	Fieldbus OPC UA
Inspection Solution	Vision Inspection
Max Product Width	400 mm
HMI	15″ Touchscreen
Packaging Type	Bags Bundles Cartons Flow Packs Trays
Product Flow	Conveyor
Max Camera Field of View	300 x 200 mm
Label Quality Inspection	Graphical ID Label Placement Label Skew Label Wrinkles
Inspection Application	Cap Inspection Code Inspection Completeness Check Custom Inspection Fill level Check Integrity Check Label Inspection Seal Inspection
Product Characteristic	Deep Frozen Dry Heavy Weight Packages Medium-Large Packages Open Small Individual Wrapped Products Small-Medium Packages Wet
Industry	Chemical Food & Beverage Metal, Plastic and Electronics Components Pharma & Biotech Transport and Logistics
Max Product Height	200 mm
Industry Segment	Agriculture and Bulk Foods Automotive Bakery and Confectionery Bulk Chemicals Cosmetics Dairy Fine and specialty chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Shipping and Mailing Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages
Label Data Inspection	1D/2D Barcode Alpha Numeric
Number of Reading Devices	6
Max Line Speed	120 m/min
Max Throughput	600 ppm
Camera Inspection Area	Side Top

Brand

Mettler Toledo

Mettler Toledo Product Inspection System

Product inspection equipment for quality control and contamination detection processes

For food and pharmaceutical manufacturers aiming to boost productivity, safeguard their brand, and adhere to compliance standards, Mettler Toledo product inspection solutions are a game-changer. Mettler Toledo comprehensive selection ranges from x-ray and metal detection to checkweighing and vision inspection tools. We also provide cutting-edge hardware and software for serialisation and aggregation applications as part of our production inspection services. Moreover, Mettler Toledo production monitoring software is designed to optimise productivity analysis. This is how we help businesses meet their production goals while ensuring quality and compliance.
