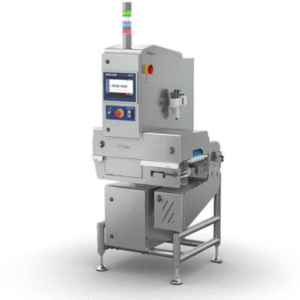

X34C Series X-Ray System
Premium X-ray inspection by X34C.
A unique solution which inspects individually wrapped food or pharmaceutical products at high line speeds. The X34C x-ray combines a short total footprint with an optimised focal distance to enhance detection of non-conforming products and reducing waste.
| X-ray Beams | Single vertical beam |
| X-ray Generator | 100 W, up to 84 kV, up to 3.3 mA Beryllium Tube |
| Diode Size | 0.4 mm |
| Max Throughput | 750 ppm |
Industries: Bakery | Bulk Chemical | Cosmetics | Confectionery | Dairy | Meat & Poultry | Nutraceuticals | Oil & Fat | Pet Food | Pharma |Ready Meals | Snack Foods | Seafood |
- Description
- Technical Specs
- Brand
- Media
Description
X34C Series X-ray Inspection System
- Single-lane solution; at 700 mm in length, it can be installed into the smallest of spaces to avoid line constraints
- Can boost productivity by running consistently at high line speeds
- Designed to offer high levels of contamination detection in individually wrapped products at line speeds of up to 120 meters per minute
- The optimised focal distance of the 0.4 mm diode detector and 100 Watt optimum power increases probability of detection and reduces product waste
Compact Design to Maximise Line Space
With 700-mm system length, a compact solution can be installed into the smallest of spaces to avoid line constraints when space is a premium.
Inspection at High Line Speeds
Designed to offer the highest levels of contamination detection in individually wrapped products at line speeds of up to 120 m/min.
Precise Detection of Contaminants
An optimised focal distance for individual packs enhances detection levels, increases probability of detection and reduces product waste.
Material No: 3071894500
Fast and Repeatable Product Changeovers
Reduce Product Waste
Optimised Detection for Target Products
5-Year Generator Warranty
Mettler Toledo – Al Thika Packaging LLC
Al Thika Packaging, the exclusive distributor of Mettler Toledo in the Middle East since 1994, provides a diverse range of premium machinery solutions. Specialising in Garvens dynamic Checkweighing systems, Safeline X-ray inspection equipment, Safeline integrated metal detection systems, and CI-Vision product inspection technology, Al Thika serves the food and non-food industries. With extensive reach across Dubai, Abu Dhabi, Sharjah, Fujairah, Ras Al Khaimah, Ajman, Umm Al Quwain, Al Ain – UAE, as well as Oman, Bahrain, Pakistan, Qatar, Kuwait and other Gulf countries, Al Thika Packaging ensures top-tier inspection and quality control solutions for businesses in the region
Specifications – X34C Series, X-ray System
| IP Rating | IP55 IP65 |
| Compatible Software | ProdX |
| Connectivity | Ethernet OPC UA USB |
| Inspection Solution | X-ray Inspection |
| Max Product Width | 170 mm |
| HMI | 10.1″ Touchscreen |
| Packaging Type | Cardboard Metalized Film Plastic |
| Cooling Method | Air Conditioner Passive fan assisted internal cooling |
| Product Flow | Conveyor |
| X-ray Beams | Single vertical beam |
| X-ray Generator | 100 W, up to 84 kV, up to 3.3 mA Beryllium Tube |
| Inspection Application | Clip Detection Completeness Check Contamination Detection Fill level Check Integrity Check Mass Control Product-Trapped in Seal |
| Product Characteristic | Small Individual Wrapped Products |
| Industry | Chemical Food & Beverage Pharma & Biotech |
| Max Product Height | 35 mm |
| Industry Segment | Bakery and Confectionery Bulk Chemicals Cosmetics Dairy Fine and specialty chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
| X-ray Detector | Single Energy, HiQiQ2 Compact Technology |
| Max Product Weight | 500 g |
| X-ray Emissions | < 1uSv/hr |
| Max Line Speed | 120 m/min |
| Max Throughput | 750 ppm |
| Diode Size | 0.4 mm |
