C35 AdvancedLine Checkweigher

High performance checkweighing

High performance checkweigher suitable for challenging weighing applications. Advanced FlashCell™ EMFR technology delivers maximum accuracy at throughputs up to 800ppm. The modular design offers customization to effectively handle any package type.

Max Weighing Zones	7
Max Line Speed	180 m/min
Weighing Technology	EMFR

REQUEST A QUOTATION

Description
Technical Specs
Brand
Media

Description

C35 AdvancedLine Checkweigher

High performance checkweighing

Throughput up to 800 products per minute
Weighing range from 3 g to 10 kg
Modular design effectively supports a large variety of product sizes and weighing challenges with enhanced precision at fast throughputs
Exceptional process optimisation with a wide range of standard and customisable software enhancements and control options

Performance Excellence

This system offers the flexibility to support all product sizes and weighing challenges with maximum precision at fast throughput.

Product Handling Excellence

Achieve maximum process stability and equipment efficiency through transition, transport, stability and sorting options for any packaging format.

Software and Control Excellence

Exceptional process optimisation with a wide range of standard and customisable, sophisticated software enhancements and control options.

Material No: 2400350000

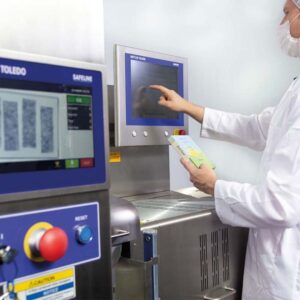

Multiple Integration Options

Available as a space saving combination system with either metal detection, vision inspection for label check, x-ray inspection, or Track and Trace technology. Ideally suited as a Critical Control Point to safeguard brand reputation.

Optimised Production Efficiency

Complete line integration to reduce give away via filling machine feedback control. Combined with statistics, this function allows full control of fill levels to fulfill net content regulations whilst keeping costly product waste to a minimum.

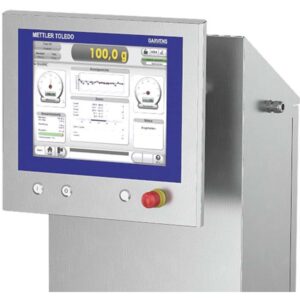

Intuitive Operation

The 15″ color touchscreen offers individual user access profiles with password protection. Easily view key weight, production and configuration data in over 30 languages and benefit from machine messages communicated in clear text for easy understanding.

Easy to Clean

With only 4 feet on the floor, the system provides easy cleaning access whilst sloped surfaces prevent product retention. Easy conveyor belt changes and removable catch bins support fast cleaning across different environments.

Mettler Toledo – Al Thika Packaging LLC

Al Thika Packaging, the exclusive distributor of Mettler Toledo in the Middle East since 1994, provides a diverse range of premium machinery solutions. Specialising in Garvens dynamic Checkweighing systems, Safeline X-ray inspection equipment, Safeline integrated metal detection systems, and CI-Vision product inspection technology, Al Thika serves the food and non-food industries. With extensive reach across Dubai, Abu Dhabi, Sharjah, Fujairah, Ras Al Khaimah, Ajman, Umm Al Quwain, Al Ain – UAE, as well as Oman, Bahrain, Pakistan, Qatar, Kuwait and other Gulf countries, Al Thika Packaging ensures top-tier inspection and quality control solutions for businesses in the region

Specifications – C35 AdvancedLine Checkweigher

IP Rating	IP54 IP65
Compatible Software	ProdX
Connectivity	Ethernet TCP/IP Fieldbus OPC UA
Inspection Solution	Checkweighing
Max Product Width	400 mm
Max Weighing Zones	7
Weighing Technology	EMFR
HMI	15″ Touchscreen
Packaging Type	Bags Bottle Bundles Cardboard Cartons Cases Composite Cans Flow Packs Metal Cans Trays VFFS
Product Flow	Conveyor
Inspection Application	Completeness Check Weight Control
Product Characteristic	Deep Frozen Dry Medium-Large Packages Open Round Container Small Individual Wrapped Products Small-Medium Packages Wet
Industry	Chemical Food & Beverage Metal, Plastic and Electronics Components
Weighing Accuracy	from ±0.01 g
Industry Segment	Automotive Bakery and Confectionery Beer, Wine and Other Alcoholic Beverages Cosmetics Dairy Fine and specialty chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Ready Meals Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages
Max Product Weight	10 kg
Max Line Speed	180 m/min
Max Throughput	800 ppm
