Ingenuity Optical Sorter
Inguity is a double-vision sensor sorter. It is equipped with Visible Color and NIR technology (Near Infra Red). The system detects soil clods, stones, and green potatoes in unwashed potatoes, and for washed potatoes, it identifies also rotten products and colour defects.
| Technology | LED pulsed light with photodiode array |
| Optical resolution | 4×4 mm |
| Sorting channels | 100 |
Industries: Fruit & Vegetables | Dry Fruits
- Description
- Technical Spec
- Brand
- Media
- Technical Data
Description

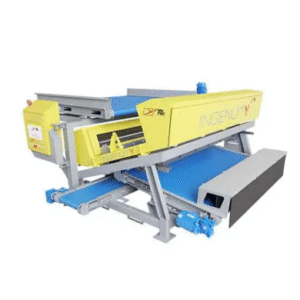

Ingenuity Optical Sorter
The double-view sorter for high capacities
Ingenuity is a double-vision sensor sorter. It is equipped with Visible Color and NIR technology (Near Infra Red). The system detects soil clods, stones, and green potatoes in unwashed potatoes, and for washed potatoes, it identifies also rotten products and colour defects.
Thanks to the 100 channels configuration, INGENUITY allows a capacity of up to 100 t/h, for large agro- and industrial production.
The machine is available in a 2WAY and 3WAY configuration, and the ejection system is by mechanical fingers in a special high-resistance and anti-abrasion material.
Raytec Vision – Al Thika Packaging LLC
Al Thika Packaging is the distributor of Raytec Vision. Since 1994 Al Thika Packaging has been supplying sorting machines for food industries in Dubai, Abu Dhabi, Sharjah, Fujairah, Ras Al Khaimah, Ajman, Umm Al Quwain, Al Ain – UAE, Muscat, Oman and many other Gulf countries.
Technology:
• LED pulsed light with photodiode array
Optical resolution:
• 4×4 mm
Vision:
• free fall – single / double sides
Version:
• 2 WAY / 3 WAY
Ejection:
• by fingers
Brand
Raytec Vision
Raytec Vision Optical Sorter
Raytec Vision leading expert in optical sorting machine technology for dry fruits, dates, nuts, potatoes, fruit and vegetable and other food products. Raytec sorters remove product defects and foreign materials based on Infrared, Chlorophyll, Translucency, Colour, Shape. Leading manufacturer Raytec Vision offers a wide range of sensor-based sorters and camera-based sorters.
Camera and sensor based sorting machines
Al Thika Packaging is the distributor of Raytec Vision. Since 1994 Al Thika Packaging has been supplying sorting machine for food industries in Dubai, Abu Dhabi, Sharjah, Fujairah, Ras Al Khaimah, Ajman, Umm Al Quwain, Al Ain – UAE, Muscat, Oman and the many other Gulf countries.
| Model | IY-1000 |
|---|---|
| Sorting channels | 100 |
| Vision area width (L) | 2500 mm (100″) |
| Pixel dimension | 4×4 mm |
| Control and diagnostic device | Interactive LCD touch-screen color digital panel onboard |
| Rejection channel width | 25 mm (1″) |
| Rejection type | Mechanical fingers |
| External and/or remote connection | Ethernet and/or modem |
| Conveyor speed | 50-70 m/min |
