Compacta
Horizontal wrapping machines
The high degree of satisfaction generated worldwide by the Compacta makes these machines the top preference of final users, which entrust their products to horizontal wrapping technology using stretch film.
| Ring diameter | (mm) 960 (Tyres 9), 1250 (Tyres 12) |
| Reel width W | (mm) 125 |
| Ring rotation speed | (rpm)5÷50 manual cycle 5÷75 automatic cycle |
| Power supply voltage | (v) 400 V 3Ph + N |
| Power supply frequency | (Hz) 50/60 |
Industries: Logistics | Paper | Agriculture | Bakery | Dry Food | Bulk Foods | Cosmetics | Pet Food | Pharma |Ready Meals | Snack Foods | Non-Food
- Description
- Technical Specs
- Brand
- Media
Description
Compacta Horizontal Stretch Wrappers
Horizontal wrapping machines by Robopac
The Compacta series machines are built following high quality criteria and construction specifications that have been improved and refined through time. The high degree of satisfaction generated worldwide by the Compacta makes these machines the top preference of final users, which entrust their products to horizontal wrapping technology using stretch film. Thanks to a wide range of ring diameters this line of machines manufactured by Robopac covers completely a broad range of wrapping needs. The versatility of use and the user friendliness of Compacta, combines with high quality level that distinguishes them and places also these Robopac products at the top of their categories.
Produced by Robopac
FILM CARRIAGE
The film carriage unit has a direct breaking transmission roller and it is adjustable at any time it also eases spool loading and film insertion to a maximum. The film carriage device is equipped with locking and quick release of the reel.
CUTTING AND CLAMP UNIT
The automatic highly reliable dual rod clamping and cutting system fully automates the wrapping process.

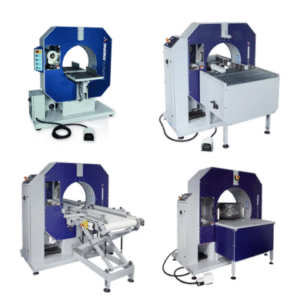

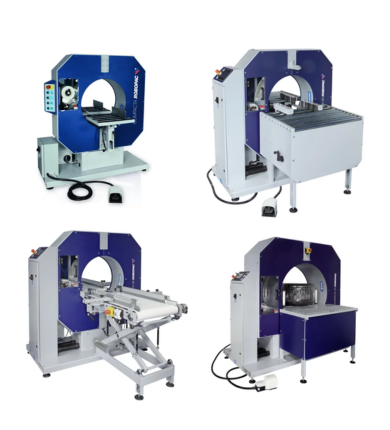

MODELS
Compacta
The Compacta series machines are built following high quality criteria and construction specifications that have been improved and refined through time. The high degree of satisfaction generated worldwide by the Compacta makes these machines the top preference of final users, which entrust their products to horizontal wrapping technology using stretch film.
Compacta SPR
The Compacta Suspension Packaging are built following high quality criteria and construction specifications, improved and thought-out through time.
The high degree of satisfaction received worldwide by the Compacta makes these machines the preference of final users, which entrust their products to horizontal wrapping technology using stretch film. The Suspension Packaging technology was created to provide a safe and effective solution for the packaging of semi-finished products placed on cardboard.
Compacta SPG
The Compacta Suspension Packaging are built following high quality criteria and construction specifications, improved and thought-out through time.
The high degree of satisfaction received worldwide by the Compacta makes these machines the preference of final users, which entrust their products to horizontal wrapping technology using stretch film. The Suspension Packaging technology was created to provide a safe and effective solution for the packaging of semi-finished products placed on cardboard.
COMPACTA TYRES
Semi-automatic rotating ring machine for the packaging of round shape products.
Robopac – Al Thika Packaging LLC
Al Thika Packaging is the exclusive distributor of Robopac in the Middle East. Since 1994 Al Thika has been supplying vertical pallet stretch wrappers and horizontal stretch wrapping machines for food, beverages & non-food industries in Dubai, Abu Dhabi, Sharjah, Fujairah, Ras Al Khaimah, Ajman, Umm Al Quwain, Al Ain – UAE, Muscat, Oman, Bahrain, Kuwait, Qatar and the many other Gulf countries.
Technical features of Compacta 4
| Ring diameter | mm | 410 |
| Reel width W | mm | 125 |
| Ring rotation speed | rpm | 10÷150 |
| Adjustable conveyors | mm | 800 |
| Clamping and cutting unit | std | |
| Power supply voltage | V | 230 V 1Ph + N |
| Power supply frequency | Hz | 50/60 |
| Installed power | kW | 0,55 |
| Compressed air consumption | Nl/cycle | 1,8 |
| Working pressure | bar | 6±1 |
Technical features of Compacta Tyres
| Ring diameter | mm | 960 (Tyres 9), 1250 (Tyres 12) |
| Reel width W | mm | 125 |
| Ring rotation speed | rpm | 5÷50 manual cycle
5÷75 automatic cycle |
| Product diameter to be wrapped (min/max) | mm | min 350, max 630 (Tyres 9)
min 350, max 850 (Tyres 12) |
| Adjustable conveyors | mm | std |
| Clamping and cutting unit | std | |
| Power supply voltage | V | 400 V 3Ph + N |
| Power supply frequency | Hz | 50/60 |
| Installed power | kW | 2,2 (Tyres 9), 3,3 (Tyres 12) |
| Compressed air consumption | Nl/cycle | 3,5÷55 (Tyres 9)
8,5÷56 (Tyres 12) |
| Working pressure | bar | 6±1 |
Brand
Robopac
Robopac Stretch Wrapper Machine
Advanced stretch wrapping, packaging, and logistics solutions
Robopac is the world leading manufacturer of stretch wrapper machine with stretch film, established in 1982. Robopac develops six types of machinery: robots pallet wrapping machine, turntables and rotating arms to stabilise palletised loads with stretch film, horizontal stretch wrap machine with stretch film for elongated products and heat shrink film application. If you need high efficiency and your budget is somewhat limited, you can still benefit from a fully automatic turntable wrapper which provides you with high quality. Al Thika Packaging is the exclusive supplier of Robopac machine in the Middle East.Automatic and semi-automatic stretch wrappers from Italy
Al Thika Packaging is the exclusive distributor of Robopac in the Middle East. Since 1994 Al Thika has been supplying vertical pallet stretch wrappers and horizontal stretch wrapping machines for food, beverages & non-food industries in Dubai, Abu Dhabi, Sharjah, Fujairah, Ras Al Khaimah, Ajman, Umm Al Quwain, Al Ain – UAE, Muscat, Oman and the many other Gulf countries.
