Technoplat PW
Turntable machine paper wrapping
The Technoplat PW is the Turntable for paper packaging from Robopac Machinery: an innovative and sustainable solution for final product packaging that uses environmentally friendly recyclable paper to ensure optimal protection without compromising environmental impact.
| Productivity | Up to 30 pallet/h |
| Max load weight | (kg/lb) 2000 std / 2500 opt / 4409 std / 5512 opt |
| Maximum product height | (mm/in) 2200 std 2400-2800-3100 opt / 86 std 94-110-122 opt |
| Forklifting | front and rear |
| Paper consumption | (kg/lb) 0,6÷1,2 / 13÷26 ** |
Industries: Logistics | Paper | Agriculture | Bakery | Dry Food | Bulk Foods | Cosmetics | Pet Food | Pharma |Ready Meals | Snack Foods | Non-Food
- Description
- Technical Specs
- Brand
- Media
Description

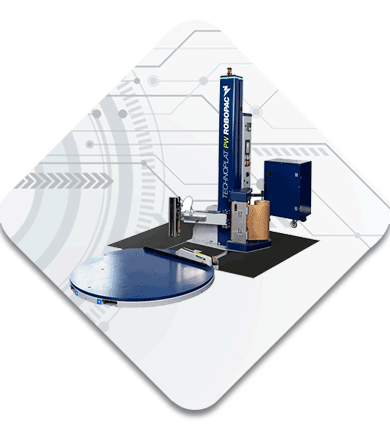

Technoplat PW Paper Wrapping Machine
The Technoplat PW is the Turntable for paper packaging from Robopac Machinery: an innovative and sustainable solution for final product packaging that uses environmentally friendly recyclable paper to ensure optimal protection without compromising environmental impact. Its state-of-the-art technology ensures optimal load stability to keep products safe during transport.
Produced by Robopac
Smart Glue Device
New automatic clamping and paper cutting system
Tilting carriage
OPTION
R-Connect
Innovation and connection for customer service: the tranquillity of maximum productivity as a result of constant monitoring of proper machine operation.
Powerful, plug & play and user friendly, R-Connect is a “turnkey” system for the end-user: the main advantage is total “peace of mind”, which is absolute tranquillity regarding machine operation, which includes production performance verification and optimisation of all management costs.
In fact, the system minimises machine downtime and manages maintenance operations better, also providing an immediate troubleshooting procedure, until the full and remote upgrade of the machine’s management software is completed.
Robopac – Al Thika Packaging LLC
Al Thika Packaging is the exclusive distributor of Robopac in the Middle East. Since 1994 Al Thika has been supplying vertical pallet stretch wrappers and horizontal stretch wrapping machines for food, beverages & non-food industries in Dubai, Abu Dhabi, Sharjah, Fujairah, Ras Al Khaimah, Ajman, Umm Al Quwain, Al Ain – UAE, Muscat, Oman, Bahrain, Kuwait, Qatar and the many other Gulf countries.
Technical features of Technoplat PW
| Productivity | pallet/h | Up to 30 pallet/h |
| Turntable diameter | mm/in | 1650 std – 1800 opt / 65 std – 71 opt |
| Turntable rotation speed | RPM | 5÷12 (Ø1650 / 65) – 5÷11 (Ø 1800 / 71) |
| Carriage up-down speed | m/min
ft/min |
1,5 ÷ 5,5
49 ÷180 |
| Max load weight | kg/lb | 2000 std / 2500 opt / 4409 std / 5512 opt |
| Paper tension | adjustable from panel | |
| Maximum pallet dimensions | mm/in | (LxW) 1000×1200 std – 1200 x 1200 opt / 40 x 48 std – 48 x 48 opt |
| Minimum pallet dimensions | mm/in | (LxW) 600 x 800 / 24 x 32 |
| Maximum product height | mm/in | 2200 std 2400-2800-3100 opt / 86 std 94-110-122 opt |
| Base height from ground | mm/in | 92,5 / 3,6 |
| Power Supply | V | 230 V 1Ph± 10% 50/60 Hz |
| Installed power | kW | 1,5 |
| Compressed air consumption | Nl/min | 240 |
| Working pressure | bar/psi | 6 / 87 |
| Forklifting | front and rear | |
| Paper reel height | mm/in | 490 / 19,3 |
| Maximum external reel diameter | mm/in | 280 / 11 |
| Internal reel diameter | mm/in | 76 / 3 |
| Maximum reel weight | kg/lb | 20 / 44 |
| Paper consumption | kg/lb | 0,6÷1,2 / 13÷26 ** |
**Paper consumption depends on the size of the pallet
