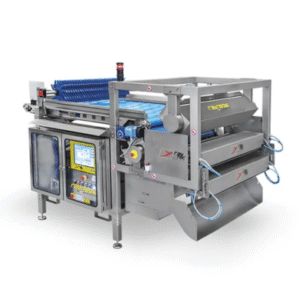

Dionysos Optical Sorter
Raynbow is an optical sorting machine with high resolution sensors that examine the product using the “high speed double vision” system which analyses 100% of the surface of each product.
| Technology | LED pulsed light with CCD Camera |
| Optical resolution | 0,5×0,5 mm |
| Reject Channels | 112+112 |
Industries: Fruit & Vegetables | Dry Fruits
- Description
- Technical Spec
- Brand
- Media
- Technical Data
Description

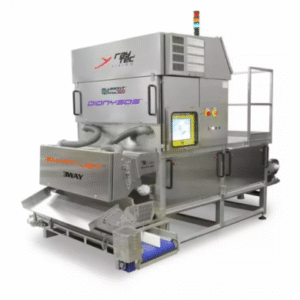

Dionysos Optical Sorter
The optical sorter for grapes & olives
Top quality wine accept just sound and ripe grapes. The new multi-frequency sorter DIONYSOS automatically removes all contaminants from the inlet stream and ensure the top quality grapes to the wine process, up to a capacity of 12 ton/hour.
Powered by the BLUEIGHT technology it removes all contaminants such as:
- rotten grapes, even if they have the same color of the good ones
- stalks, leaves and, if requested, green grapes
- any type of plastic, irrespective of the color
- any kind of insect
- dry grapes
By the Double Rejection System (air jet + air jet) the DIONYSOS can be configured as a 3WAY sorter, to reject on a separate stream the dry grapes, usually addressed to 2nd quality wines. Avoiding the 2nd late fermentation due to the dry grapes this sorter helps in keeping the sugar level under control.
Raytec Vision – Al Thika Packaging LLC
Al Thika Packaging is the distributor of Raytec Vision. Since 1994 Al Thika Packaging has been supplying sorting machines for nuts, fruit and vegetable industries in Dubai, Abu Dhabi, Sharjah, Fujairah, Ras Al Khaimah, Ajman, Umm Al Quwain, Al Ain – UAE, Muscat, Oman and many other Gulf countries.
Technology:
• LED pulsed light with CCD Camera
Optical resolution:
• 0,5×0,5 mm
Vision:
• on belt – top view
Version:
• 2 WAY / 3 WAY
Ejection:
• by fingers /by air nozzles
Brand
Raytec Vision
Raytec Vision Optical Sorter
Raytec Vision leading expert in optical sorting machine technology for dry fruits, dates, nuts, potatoes, fruit and vegetable and other food products. Raytec sorters remove product defects and foreign materials based on Infrared, Chlorophyll, Translucency, Colour, Shape. Leading manufacturer Raytec Vision offers a wide range of sensor-based sorters and camera-based sorters.
Camera and sensor based sorting machines
Al Thika Packaging is the distributor of Raytec Vision. Since 1994 Al Thika Packaging has been supplying sorting machine for food industries in Dubai, Abu Dhabi, Sharjah, Fujairah, Ras Al Khaimah, Ajman, Umm Al Quwain, Al Ain – UAE, Muscat, Oman and the many other Gulf countries.
| Technical Features | |
| Sorting Efficiency Organic Defects | 95% |
| Sorting Efficiency non-organic Defects | 97% |
| Sorting Efficiency – dry grapes (also on 3WAY configuration) | 85% |
| Optical Resolution | 0,5 mm |
| Reject Channels | 112+112 |
| Reject Channel Pitch | 9 mm |
| Sorting conveyor speed | 100-160m/min |
| Sorting Conveyor width | 1081 mm |
| Weight | 1700 kg |
