Technoplat CS/CW
Turntable wrapping machines with clamping, cutting and film spreading or welding system
Technoplat CS and CW are automatic wrapping machines and represent the innovative solution to fully automatic pallet wrapping.
| Turntable diameter | (mm) 1650 std. 1800 opt. |
| Max load weight | (kg) 2000 std. 2500 opt. |
| Turntable speed | (rpm) 5÷12 |
| Maximum product dimensions (LxW) | (mm) 1000×1200 std. 1200×1200 opt. |
| Forklifting | front and rear |
Industries: Logistics | Furniture | Paper | Agriculture | Bakery | Dry Food | Bulk Foods | Cosmetics | Confectionery | Dairy | Meat & Poultry | Chemical | Pet Food | Pharma |Ready Meals | Snack Foods | Seafood | Non-Food
- Description
- Technical Specs
- Brand
- Media
Description
Technoplat CS/CW Turntable Wrapping Machine
Pallet wrapping machines with clamping, cutting and film spreading or welding system
Technoplat CS and CW are automatic wrapping machines and represent the innovative solution to fully automatic pallet wrapping. The machine is equipped with the Film Clamp and Cut unit with spreader, in the CS version, and welder, in the CW version, that ensures the film tail is attached, cut, spread or welder and perfectly adhered to the pallet.
Produced by Robopac
FR CARRIAGE
Film carriage with electromagnetic powder brake on return roller, stretch tension adjustable from control panel.
PDS CARRIAGE
Pre-stretch system is fixed at 250%. “Stretch Control” control activates the electromagnetic clutch positioned on the first roller.
PVS CARRIAGE
PVS Carriage with powered stretch system controlled by two independent motors. Stretch ratio adjustable from panel board from 150% up to 400%.
7'' TOUCH SCREEN CONTROL PANEL
The control panel is the brain of Technoplat, here lies the heart of the machine and technology Robopac ie Cube Technology.
OPTIONS
R-Connect
Innovation and connection for customer service: the tranquillity of maximum productivity as a result of constant monitoring of proper machine operation.
Powerful, plug & play and user friendly, R-Connect is a “turnkey” system for the end-user: the main advantage is total “peace of mind”, which is absolute tranquillity regarding machine operation, which includes production performance verification and optimisation of all management costs.
In fact, the system minimises machine downtime and manages maintenance operations better, also providing an immediate troubleshooting procedure, until the full and remote upgrade of the machine’s management software is completed.
Ramps
Ramps for easy loading with hand pallet truck.

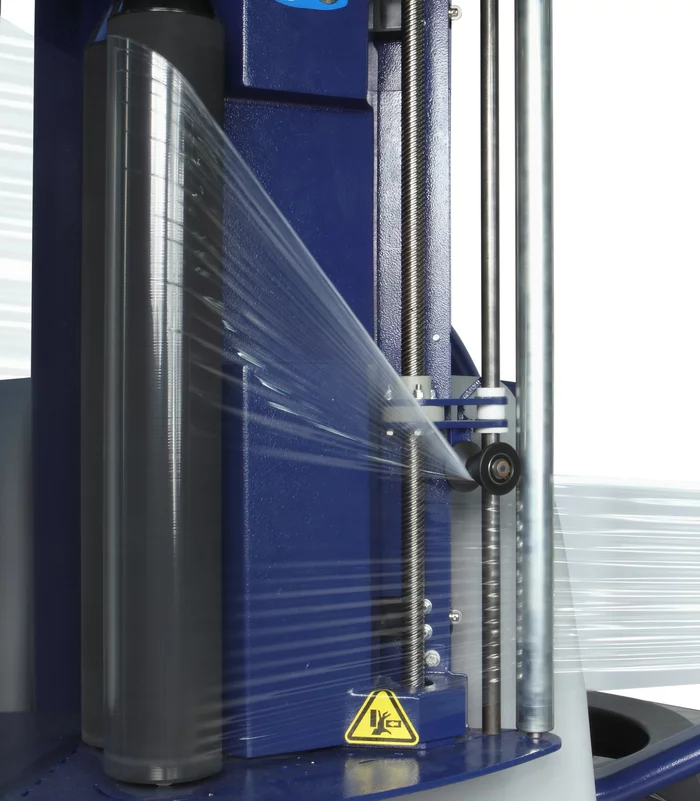

Mechanical roping device
Film roping system useful to increase stabilisation and containment of the product.
The reel descends from top to bottom thanks to a special electric motor present on the reel carriage.
The height of the film band and the enabling of roping are adjustable through the touch screen control panel.

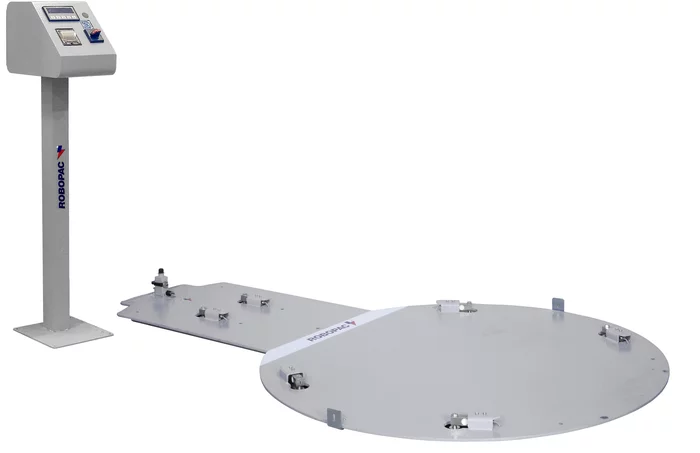

Weighing kit
Ramps for easy loading with hand pallet truck.
Weighing frame kit for turntable machines.
| Max load weight | kg | 1200 std. 2000 opt. (Ø1500) / 2000 std. 2500 opt. (Ø1650-Ø1800) |
| Sensibility | ±0,2 | |
| Integrated printer | opt. | |
| Compatibility | Ecoplat Plus (Ø1500) / Ecoplat Plus, Masterplat Plus, Rotoplat, Technoplat CS/CW (Ø1650) / Masterplat Plus, Rotoplat, Technoplat CS/CW (Ø1800) | |
| Power supply voltage | V | 110-240 V (1Ph) |
| Power supply frequency | Hz | 50/60 |
Robopac – Al Thika Packaging LLC
Al Thika Packaging is the exclusive distributor of Robopac in the Middle East. Since 1994 Al Thika has been supplying vertical pallet stretch wrappers and horizontal stretch wrapping machines for food, beverages & non-food industries in Dubai, Abu Dhabi, Sharjah, Fujairah, Ras Al Khaimah, Ajman, Umm Al Quwain, Al Ain – UAE, Muscat, Oman, Bahrain, Kuwait, Qatar and the many other Gulf countries.
Technical features of Technoplat CS/CW
| Turntable diameter | mm | 1650 std. 1800 opt. |
| Max load weight | kg | 2000 std. 2500 opt. |
| Turntable speed | rpm | 5÷12 |
| Carriage up-down speed | m/min | 1,5÷5,5 |
| Maximum product dimensions (LxW) | mm | 1000×1200 std. 1200×1200 opt. |
| Maximum product height | mm | 2200 std. 2400/2800/3100 opt. |
| Film carriage type | FR, PDS, PVS | |
| Film stretch | adjustable from panel | |
| Film pre-stretch | n.a. (FR), fixed 250% std (PDS), variable 150-400% (PVS) | |
| Forklifting | front and rear | |
| Power supply voltage | V | 230 V 1Ph |
| Power supply frequency | Hz | 50/60 |
| Installed power | kW | 2,1÷2,9 |
| Max reel dimensions | mm | 500×300 |
| Max reel weight | kg | 20 |
| Film thickness | μm | 17÷35 |
